fire fighting truck china factory

Ask Lasest Price
Brand Name :	chengliwei
Model Number :	truck
Certification :	CE
Price :	price need to be negotiated
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000pc / month
Delivery Time :	5 -8 working days

Add to Cart

Product Details
Company Profile

fire fighting truck china factory

XCMG Official DG54M1 54m brand new aerial platform fire fighting truck .

XCMG DG54M1 aerial platform fire truck is the main battle vehicle
integrates three functions of fire tanker, aerial spray truck, foam
truck and aerial truck, which is widely applied in fire fighting
and rescue operation in cities and towns, mine, oil field and plant
as well as other medium and high-rise buildings, in addition, it
also is the first choice for medium and high-rise building fires,
rescue of persons in distress and properties. Deceleration and
stopping at limit position are controlled by computer
automatically, which makes operation quick, labor-saving,
convenient and stable, also brings large speed regulating range,
flexible fine motion and exact movements. With the effective
cooperation of straight telescopic boom plus folding boom, it is
with excellent aerial obstacle-crossing capacity, which has the
wider operation scope than the straight boom fire truck.

Specification

XCMG provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand.
Boundary dimension		11760×2500×4000mm
Full mass		41600kg
Maximum speed		≥90km/h (electric speed limit)
Minimum turning diameter		≤24m
Approach angle		≥23°
Departure angle		≥9°
Maximum gradeability		≥25%
Outrigger span		Longitudinal span	6700mm
Outrigger span		Horizontal span	8000mm
Work platform load		500kg
Maximum working height		54m
Maximum operating radius		25m
Elevating angle of boom		The elevating angle of telescopic boom is 0 to 83 degrees, and that of boom NO.2 and telescopic booms is 0 to 177 degrees.
Rotation scope		360° full-rotation
Spread time of outrigger		≤35s
Time for lifting the boom to rated height and rotating 90°		≤150s
Maximum slewing speed		0.1~1.0r/min
Fire pump		Rated flow (L/s)	≥70
Fire pump		Rated pressure (MPa)	≥1.6
Fire fighting gun	Water monitor	Model	PLKD120ZB-3480
		Rated flow (L/s)	64
		Rated pressure (MPa)	≤1.0
		Range (m)	≥65m
	Foam monitor	Model	PLKD120ZB-3480
		Rated flow (L/s)	64
		Rated pressure (MPa)	≤1.0
		Range (m)	≥60m
		The swing range of the monitor head	-45~+60
		The swing range of the monitor head	-80~+90

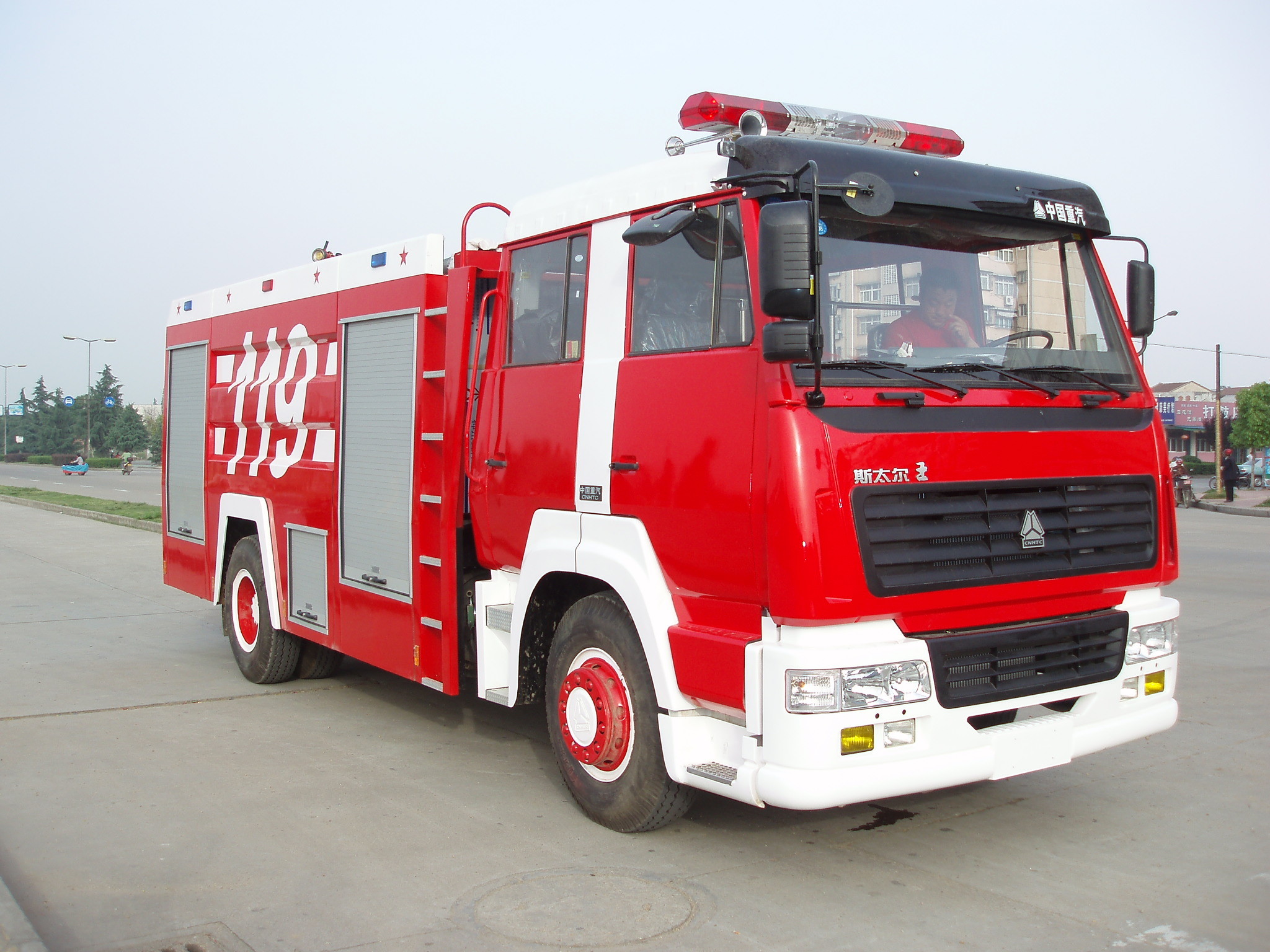

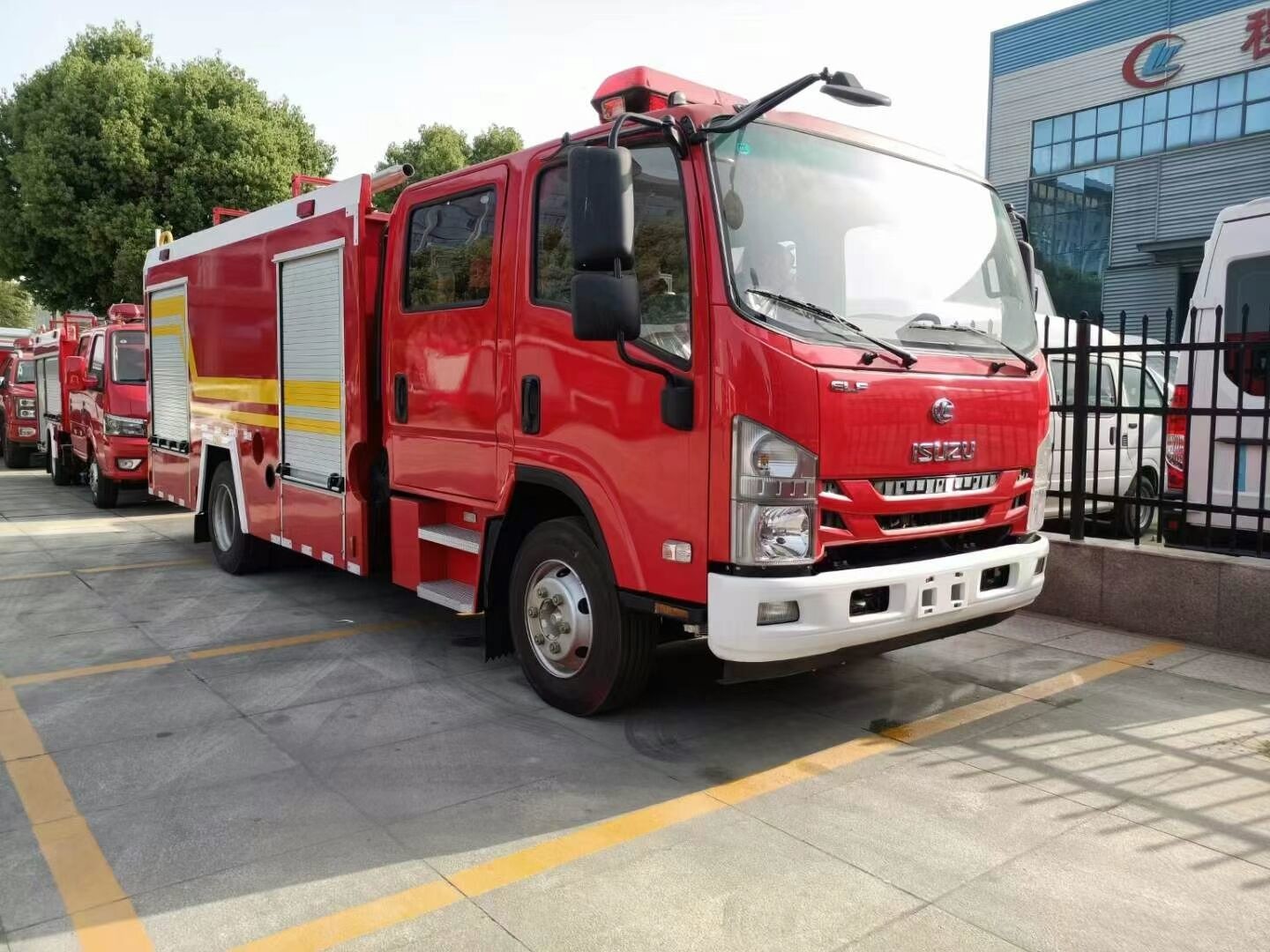

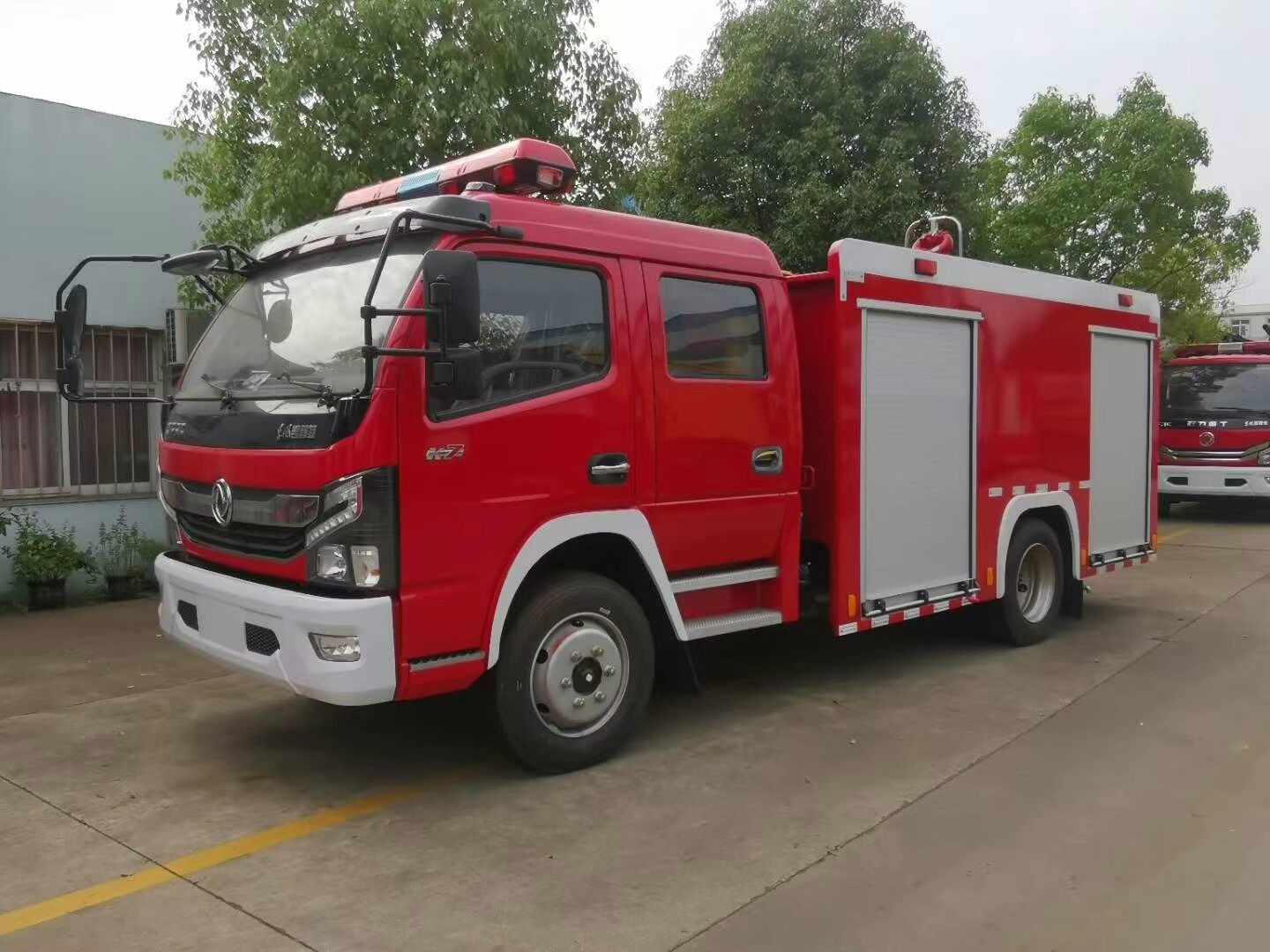

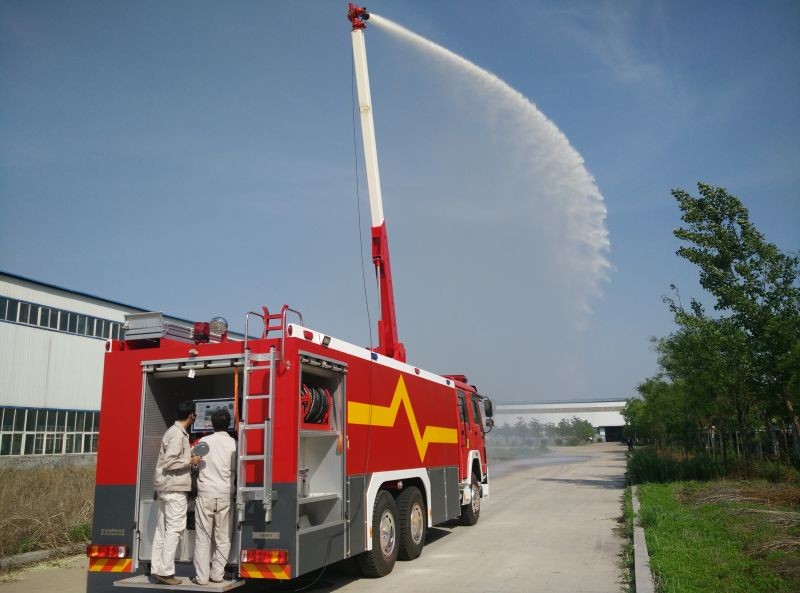

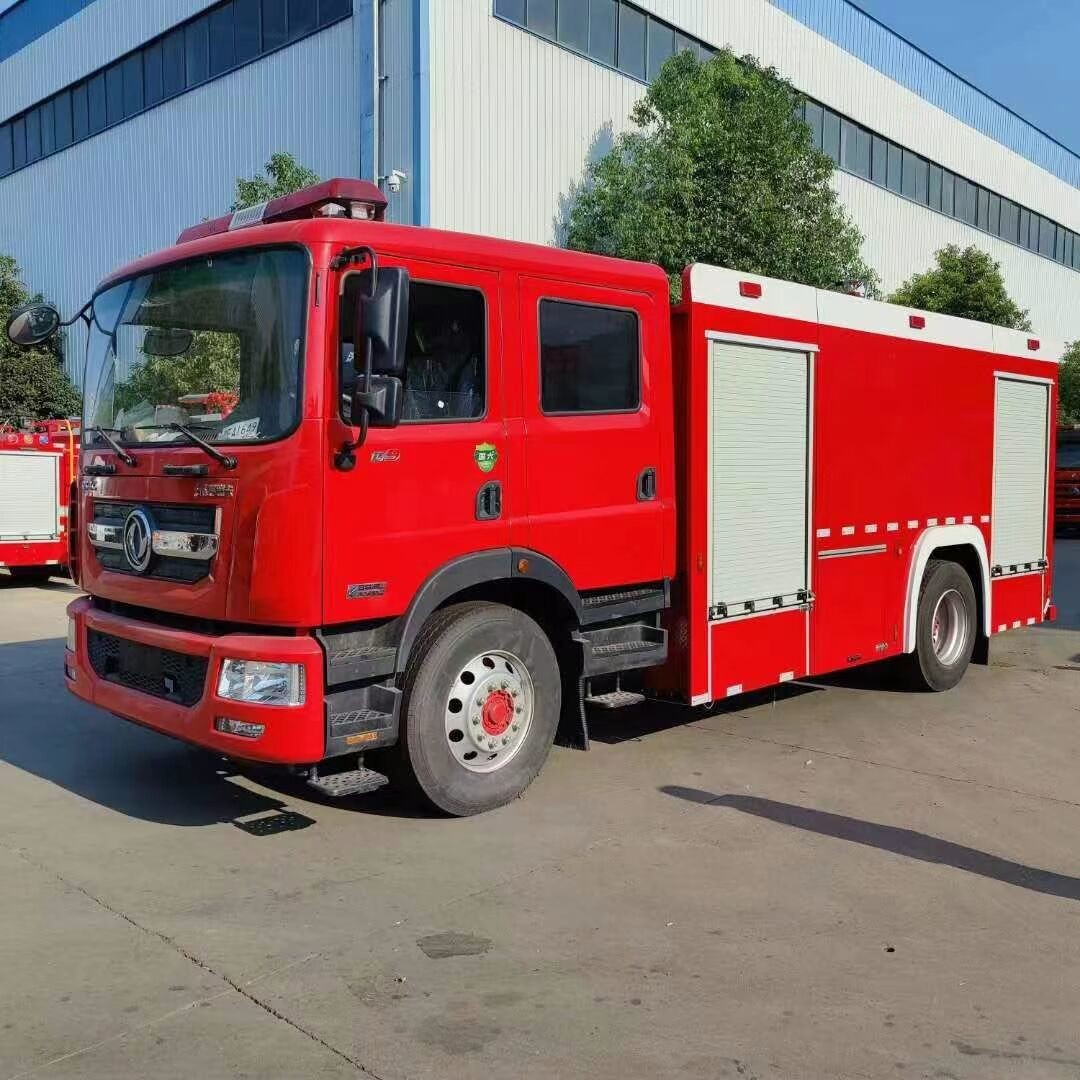

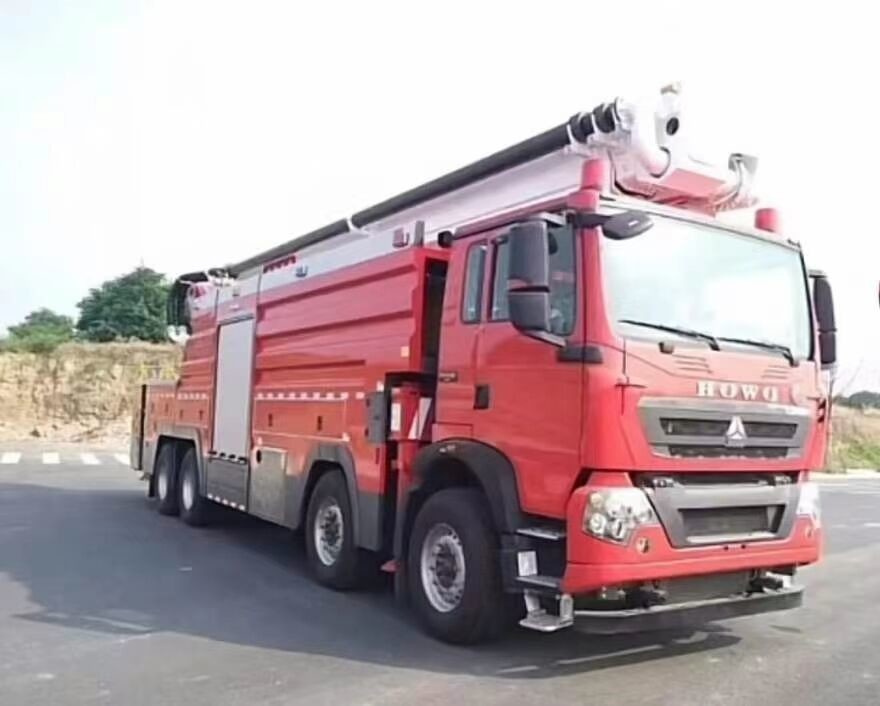

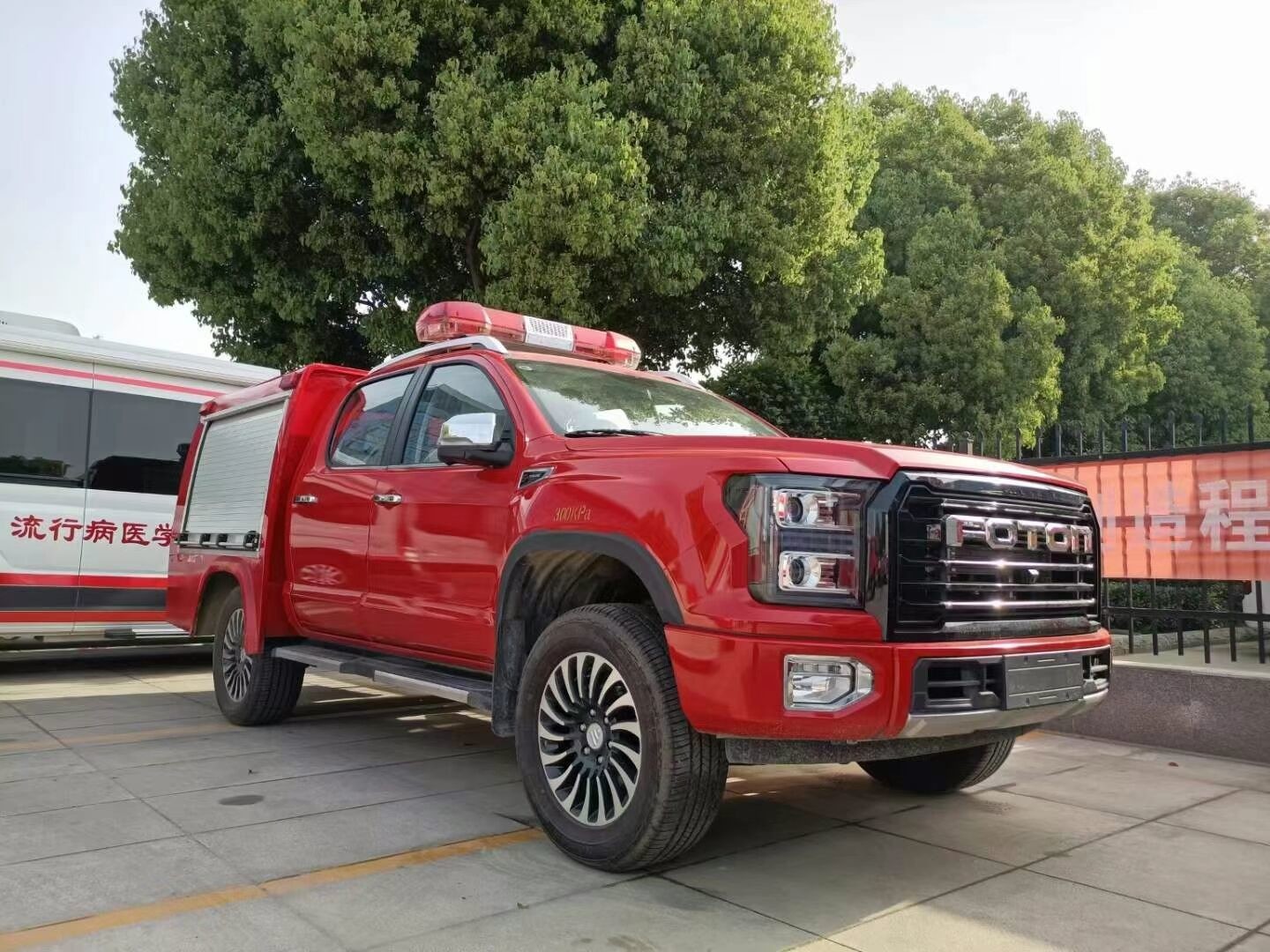

Product Show

fire fighting truck china factory

FAQ

Q1: What is your terms of packaging?

A: Generally, we package your goods by bulk, RO-RO and flat-rack
container.

Q2: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.

Q3: What's the delivery time?

A: It takes 7-30 days to delivery the goods upon receipt of your
advance payment. The specific delivery time depends on the product
type and quantity you order.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
